| Place of Origin: | China |
| ब्रांड नाम: | XD |
| प्रमाणन: | CE / ISO9001 |
| Model Number: | XD740 |
| Minimum Order Quantity: | 1 set |
|---|---|
| मूल्य: | Negotiable |
| Packaging Details: | Standard heat treated wooden case |
| Delivery Time: | 15 days |
| भुगतान शर्तें: | टीटी नियंत्रण रेखा |
| Supply Ability: | 30 sets per month |
| Operation:: | Automatic | Weight:: | 800kg |
|---|---|---|---|
| Power ac:: | 3-phase 380v 50hz | Transporting belt:: | Stainless steel |
| Working temperature:: | 500 degree | Package:: | Wooden case |
| हाई लाइट: | continuous furnace heat treatment,hardening tempering furnace |
||

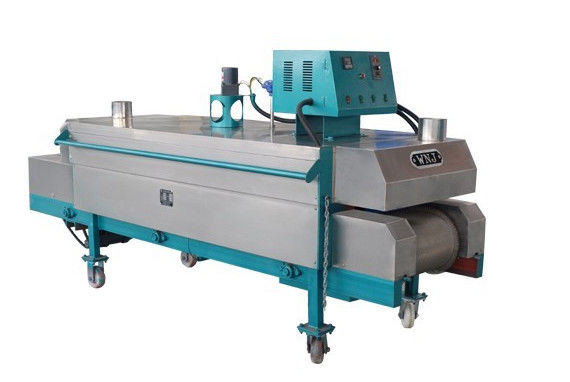

XDR520-690 Continuous tempering furncace for heat treating all designs of springs
Details:
1.The continuous furnaces are produced by adopting advanced technologies abroad.
Main features include precision temperature control, energy saving, and less pollution.
2. Work pieces can be produced constantly with the furnace in the production line.
3. Our furnaces are exported to Europe, America and Southeast Asia.
Technical specification:
|
Model |
Max temperature |
Power |
Temperature |
L*W*H |
L*W*H |
|
XDR-520 |
500℃ |
30KW |
2 |
2×0.5×0.09 |
3.4×1.1×1.9 |
|
XDR-530 |
40KW |
3 |
3×0.5×0.12 |
5.1×1.1×1.9 |
|
|
XDR-630 |
48KW |
3 |
3×0.6×0.12 |
5.1×1.2×1.9 |
|
|
XDR-540 |
55 KW |
4 |
4.5×0.5×0.12 |
6.7×1.1×1.9 |
|
|
XDR-640 |
65 KW |
4 |
4.5×0.6×0.12 |
6.7×1.2×1.9 |
|
|
XDR-740 |
65 KW |
3 |
4×0.7×0.12 |
6.1×1.3×1.9 |
|
|
XDR-840 |
93KW |
4 |
4.5×0.8×0.12 |
7×1.4×1.9 |
|
|
XDR-650 |
78 KW |
4 |
5×0.6×0.15 |
7.2×1.2×1.9 |
|
|
XDR-670 |
93 KW |
5 |
7×0.6×0.2 |
9.2×1.2×1.9 |
|
|
XDR-590 |
120 KW |
5 |
9×0.5×0.2 |
11×1.3×1.6 |
|
|
XDR-690 |
137 KW |
5 |
9×0.6×0.2 |
11×1.4×1.6 |
