| Place of Origin: | China |
| ब्रांड नाम: | XD |
| प्रमाणन: | CE / ISO9001 |
| Model Number: | 400 |
| Minimum Order Quantity: | 1 set |
|---|---|
| मूल्य: | Negotiable |
| Packaging Details: | Standard heat treated wooden cases |
| Delivery Time: | 7 days |
| भुगतान शर्तें: | टीटी नियंत्रण रेखा |
| Supply Ability: | 50 sets per month |
| Application:: | Auxilliary equipment for spring machine | Machine painting:: | Blue |
|---|---|---|---|
| Package:: | Wooden case | Motor:: | 1.2kw |
| Diamter of table:: | 930mm | Speed of table:: | 100rpm |
| हाई लाइट: | wire feeding machine,wire feeding equipment |
||

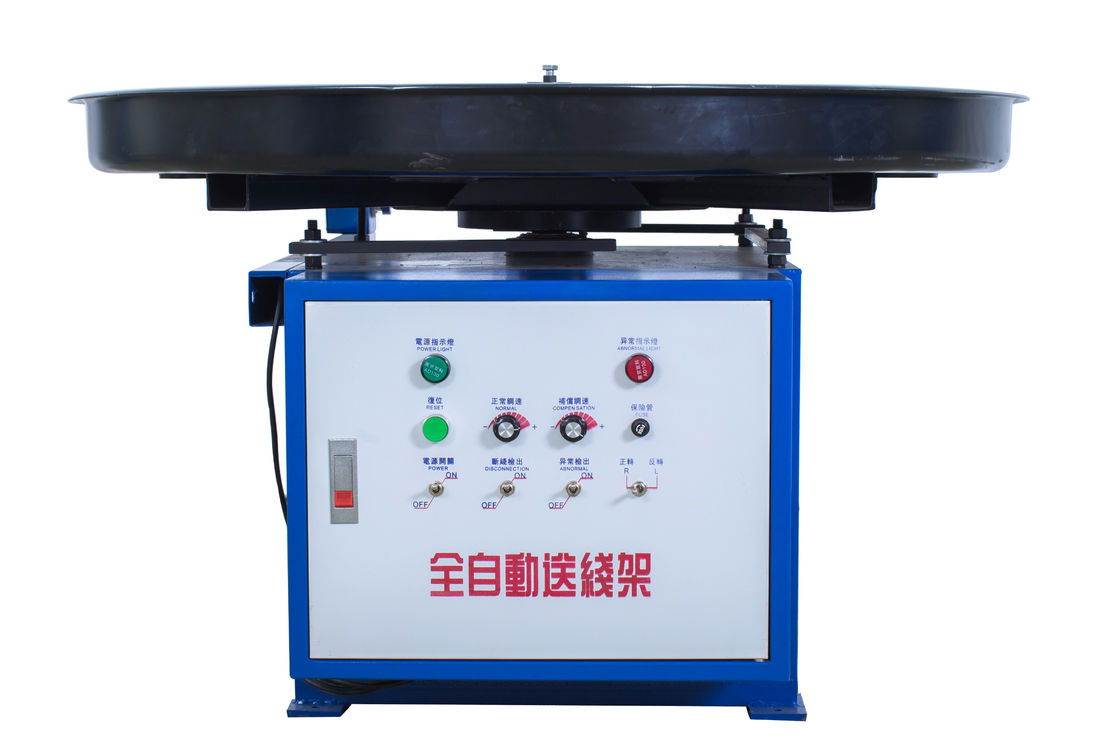

CNC spring machine auxiliary equipment of wire decoiler 400kg loading
Technical specifications:
|
Model |
XD-400 |
|
Max Capacity of load |
400KG |
|
Max Speed Of Table |
100rpm |
|
Diameter Of Table |
930mm |
|
Motor |
1.2KW |
|
Dimensions |
550 * 500 * 880 mm |
|
Weight |
110KG |
Product Description:
Automatic spring wire decoiler is applying with the CNC spring forming machine. It is stable and durable.
It will stop automatically when the feeding is abnormal. The wire feed rate can be automatically adjusted
during working, synchronizing the speed with the spring forming machine. It will stop automatically in
case of faults like kinking of wire.
Features Of spring wire decoiler:
1, Wrap lines warning function
2, Short lines warning function
3, To move the feeding
4, Automatic feeding
5, Manually even feeding
6, Forward/reversal rotation
